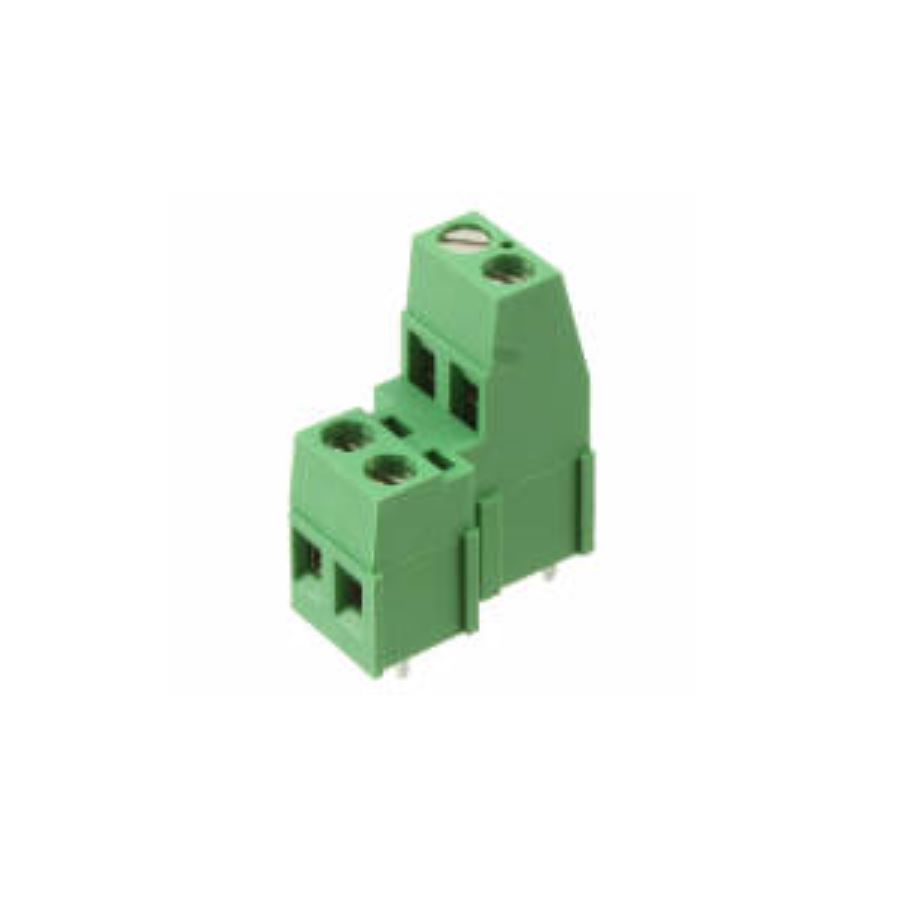

796692-2
Manufacturer:
TE Connectivity
Mfr.Part #:
796692-2
Datasheet:
Description:
Terminal Blocks Through Hole 2 5.08 mm 17.5 A 300 V 30 AWG to 12 AWG
| Parameter | Value |
|---|---|
| Length | 13.2 mm |
| Termination | Screw |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Box |
| Voltage Rating | 300 V |
| Depth | 21.5 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| Voltage | 300 V |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 5.08 mm |
| Current | 17.5 A |
| Current Rating | 17.5 A |
| Max Current Rating | 17.5 A |
| Flammability Rating | UL94 V-0 |
| Number of Circuits | 2 |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Color | Green |
| Number of Contacts | 4 |
| ELV | Compliant |
| Number of Poles | 2 |
| Connector Type | Receptacle |
| Thread Size | M3 |
| Number of Positions | 2 |
| Number of Rows | 2 |
| Housing Material | Polyamide |
| Number of Positions Per Level | 2 |
| Number of Levels | 2 |
| Connector System | Wire-to-Board |
| Max Voltage Rating (AC) | 300 V |
| Max Supply Voltage (AC) | 300 V |
| Wire Gauge (Max) | 30 AWG |
| Wire Gauge (Min) | 30 AWG |
| Housing Color | Green |
| Plating | Brass, Tin |
| Tail Length | 3.81 mm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 1 week ago) |
| Connection Method | Screw |
| Wire Gauge Range | 30 AWG to 12 AWG |
Stock: 2788
Distributors
pcbx
pcbxUnit Price$2.23341
Ext.Price$2.23341
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $2.23341 | $2.23341 |
| 10 | $1.58805 | $15.88050 |
| 25 | $1.38904 | $34.72600 |
| 50 | $1.26428 | $63.21400 |
| 100 | $1.16073 | $116.07300 |
| 300 | $1.07209 | $321.62700 |
| 500 | $0.99022 | $495.11000 |
| 1000 | $0.94067 | $940.67000 |
| 3000 | $0.90723 | $2721.69000 |
| 5000 | $0.87498 | $4374.90000 |
